Televac® MX2A Aktives Thermoelement-Vakuummessgerät (Pirani)

Teilenummern: 2-8910-101, 2-8910-110, 2-8910-111, 2-8910-116, 2-8910-130, 2-8910-125, 2-8910-131, 2-8910-132, 2-8910-150, 2-8910-152


Kompatibel mit: MX Active Gauge EthernetIP Gateway


Merkmale und Vorteile:

  • Kostengünstiges Vakuummeter
  • Sehr kompaktes Vakuummeter
  • Leicht ablesbares digitales OLED-Vakuummeter-Farbdisplay
  • Konvektionsmessgerät mit hervorragender Auflösung und Wiederholbarkeit (Pirani)
  • Überlegene Leistung von Gerät zu Gerät zwischen den Vakuummessgeräten
  • ISO 17025 accredited and NIST traceable calibrations optional
  • Ausgezeichneter Kundensupport für Vakuummessgeräte

The Televac® MX2A Active Vacuum Gauge (also called a thermocouple vacuum gauge, analog or digital vacuum gauge, or Pirani gauge) utilizes an easily replaceable Televac® 2A thermocouple vacuum gauge. This vacuum gauge has a variety of features, including a pressure measurement range from 1*10-4 Torr up to 1000 Torr, RS-485 communications, two programmable set points, and a selectable analog vacuum gauge output.

The bright OLED digital vacuum gauge display makes it easy to read from a distance. Options on this Pirani gauge can be set from four touch controls on the top of the unit or through RS-485 communications (or EthernetIP if you add in an EthernetIP gateway). This vacuum gauge offers an extensive selection of fittings, simple use, ease of sensor replacement, and low cost, making it an excellent choice for a variety of vacuum applications.

MX2A Thermoelement-Aktiv-Vakuum-Messgerät

Beschreibung des Produkts
Preis
Kalibrierung
Menge

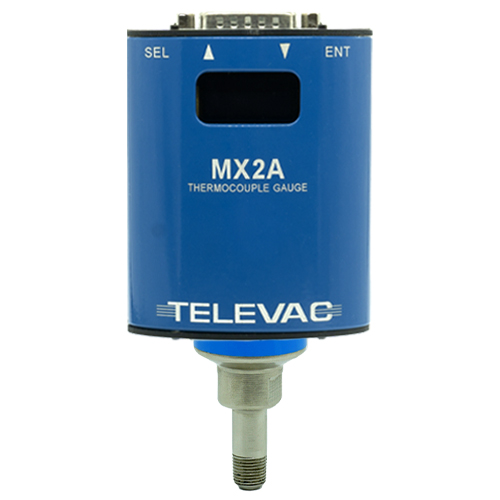

1/8″ NPT Edelstahl
1/8″ NPT Edelstahl
PN: 2-8910-101
$725.00

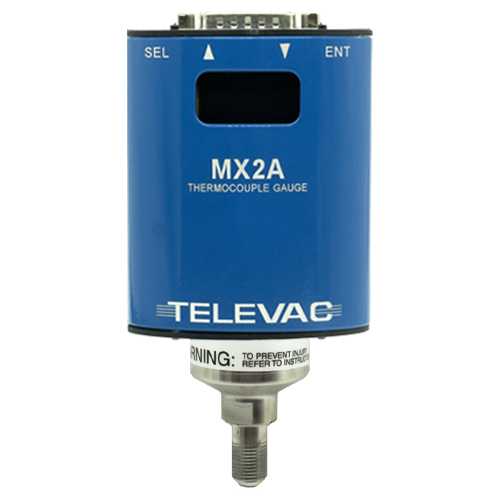

1/8″ NPT Messing vernickelt
1/8″ NPT Messing vernickelt
PN: 2-8910-110
$580.00

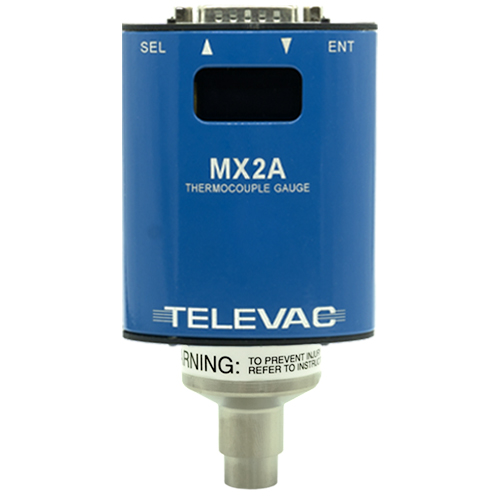

1/2" gerade Edelstahl
1/2" gerade Edelstahl
PN: 2-8910-111
$725.00

NW16/KF16 Vernickeltes Messing
NW16/KF16 Vernickeltes Messing
PN: 2-8910-116
$685.00

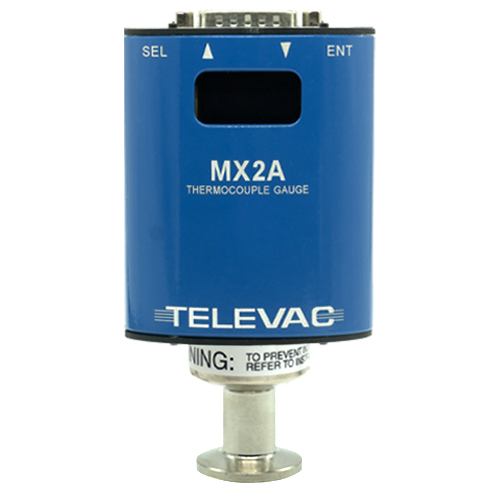

NW16/KF16 Rostfreier Stahl
NW16/KF16 Edelstahl
PN: 2-8910-130
$730.00

NW25/KF25 Vernickeltes Messing
NW25/KF25 Vernickeltes Messing
PN: 2-8910-125
$685.00

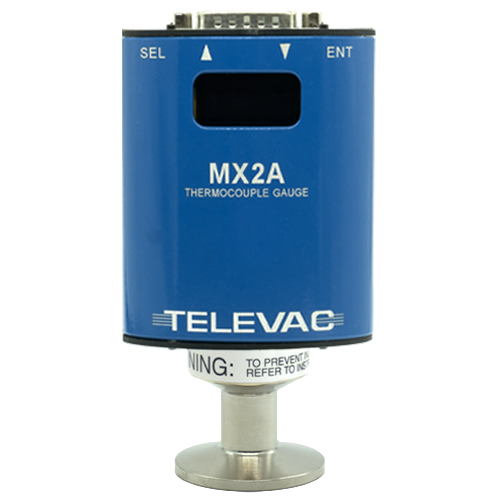

NW25/KF25 Rostfreier Stahl
NW25/KF25 Edelstahl
PN: 2-8910-131
$735.00

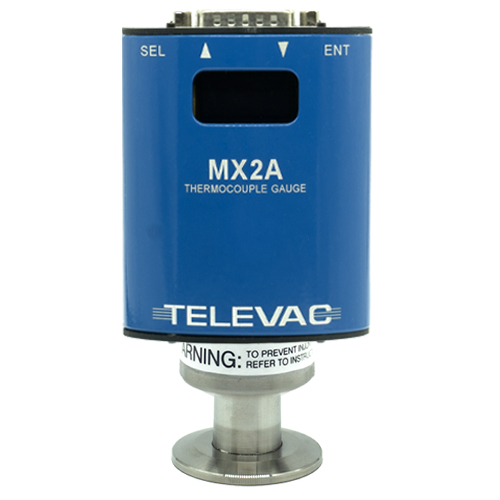

NW40/KF40 Rostfreier Stahl
NW40/KF40 Edelstahl
PN: 2-8910-132
$735.00

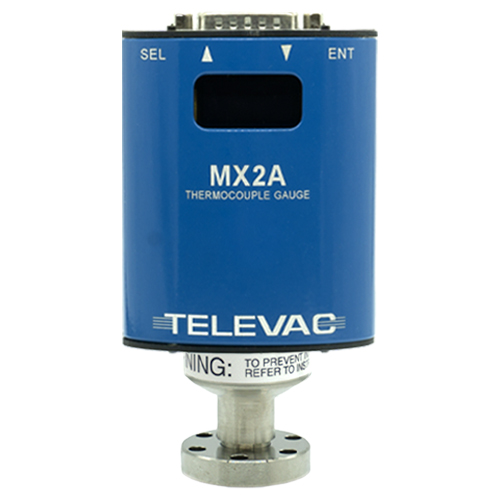

CF16/1.33
CF16/1,33" CF-F Edelstahl
PN: 2-8910-150
$735.00

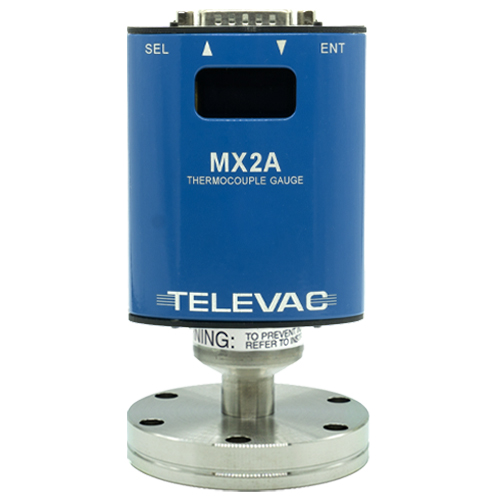

CF40/2.75
CF40/2,75" CF-F Edelstahl
PN: 2-8910-152
$740.00

D-Sub 15, 15 Conductor Cables (Flying Leads)

Beschreibung des Produkts
Preis
Menge
10′ D-Sub 15, 15 Conductor Cable (Flying Leads)
10′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-010
$305.00
20′ D-Sub 15, 15 Conductor Cable (Flying Leads)
20′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-020
$390.00
35′ D-Sub 15, 15 Conductor Cable (Flying Leads)
35′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-035
$625.00
50′ D-Sub 15, 15 Conductor Cable (Flying Leads)
50′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-050
$760.00
65′ D-Sub 15, 15 Conductor Cable (Flying Leads)
65′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-065
$885.00
100′ D-Sub 15, 15 Conductor Cable (Flying Leads)
100′ D-Sub 15, 15 Conductor Cable (Flying Leads)
PN: 2-9858-100
$1,355.00

D-Sub 15, 6 Conductor Cables (Flying Leads)

Beschreibung des Produkts
Preis
Menge
10’ D-Sub 15, 6 Conductor Cable (Flying Leads)
10’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-010
$130.00
20’ D-Sub 15, 6 Conductor Cable (Flying Leads)
20’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-020
$155.00
35’ D-Sub 15, 6 Conductor Cable (Flying Leads)
35’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-035
$185.00
50’ D-Sub 15, 6 Conductor Cable (Flying Leads)
50’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-050
$210.00
65’ D-Sub 15, 6 Conductor Cable (Flying Leads)
65’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-065
$245.00
100’ D-Sub 15, 6 Conductor Cable (Flying Leads)
100’ D-Sub 15, 6 Conductor Cable (Flying Leads)
PN: 2-9857-100
$280.00

Wand-Netzteil

Beschreibung des Produkts
Preis
Menge
100-240 V AC/47-63 Hz, Plug Types A, C, G, I
100-240 V AC/47-63 Hz, Plug Types A, C, G, I
PN: 2-7900-097
$160.00
Betriebsbereich 1*10-4 Torr bis 1000 Torr
Kommunikation RS-485
Analoger Ausgang 7 wählbar 0 V DC bis 10 V DC
Programmierbare Sollwerte 2
Sollwert 1 Offener Kollektor
Sollwert 2 Relais
Versorgungsspannung 22 V DC bis 26 V DC
Maximale Leistung 8 W
Kalibriermedium Trockene Luft oder Stickstoff
Überdruck 150 psi
Auflösung des digitalen Ausgangs 2 signifikante Ziffern mit Exponent
Auflösung des Analogausgangs 16 Bits
Betriebstemperatur 0 °C bis 50 °C
Ausheiztemperatur
Brass (PN: 2-8910-110) 100 °C (Elektronik entfernt)
Stainless Steel (PN: All Others) 200 °C (Elektronik entfernt)
Reaktionszeit ≤2 s
Anzeige Lesbarer Abstand 3 m (10 ft)
Genauigkeit
0,1 mTorr bis 1 mTorr 0,1 mTorr Auflösung
1 mTorr bis 10 mTorr ±1 mTorr
10 mTorr to 1 Torr ±10% vom Messwert
1 Torr to 100 Torr ±30 of reading (vertical mount)
100 Torr bis 1000 Torr ±10% vom Messwert (vertikale Montage)
Analoger Ausgang ±10 mV
Graph of the analog output behavior for the Televac® Thermocouple Active Vacuum Gauge.
Pin Beschreibung
1 Analog Out (Ground)
2 RS-485 A (-)
3 SP2 NC
4 SP2 NO
5 SP1 Open Drain
6 Floating
7 Floating
8 Supply Voltage (0 to 10) V
9 Analog Out (0 to 10) V
10 RS-485 B (+)
11 SP2 Com
12 SP1 Source
13 Floating
14 Floating
15 Supply Voltage (-)
Diagram of the electrical connections (pinout) for the Televac® MX2A Thermocouple Active Vacuum Gauge.
*0S1<CR> Read vacuum measurement
*0R1<CR> Read units of measurement
*0R2<CR> Read SP1L and SP1H

Assume address 0

Full list of commands is available in the instruction manual.

The MX2A has two set points. Set point 1 is an N-Channel 60 V MOSFET open collector. It has a maximum current rating of 1 A. The datasheet can be found at www.vishay.com/en/product/69958.

Set point 2 is a relay with a maximum switching voltage of 220 V DC (250 V AC) and a maximum switching current of 2 A. The datasheet can be found at www.te.com/catalog/pn/en/1393788-3.

MX2A PN: -110, -116, -125 MX2A PN: All Others
Nickel Nickel
Glass Glass
Gold Gold
Tophet Tophet
Cupron Cupron
Solder Stainless Steel
Gehäuse Aluminium
Elektrische Anschlüsse D-Sub 15-pin male
Weight with Sensor (typical) 345 g (0.76 lbs)
Gewicht ohne Sensor 181 g (0.40 lbs)
Dimensional drawing of the Televac® MX2A Thermocouple Active Vacuum Gauge.
Certified to CAN/CSA C22.2 No. 61010-1-12
CE certified to EN 61010-1, EN 61236-1, EN 55011
RoHS compliant
IP40
EAC certified
ISO 17025 accredited calibration optional
NIST-rückführbare Kalibrierung optional

Download STEP File

Teilenummer Beschreibung STEP File
2-8910-101 MX2A 1/8″ NPT Stainless Steel Download
2-8910-110 MX2A 1/8″ NPT Nickel-Plated Brass Download
2-8910-116 MX2A NW16/KF16 Nickel-Plated Brass Download
2-8910-130 MX2A NW16/KF16 Stainless Steel Download
Menge Discount
1 List
5 2%
10 5%
15 7%
20 10%
25 13%
30+ 15%

D-Sub 15 Cable Quantity Discounts

Menge Discount
1 List
50 5%
75 10%
100+ 15%
