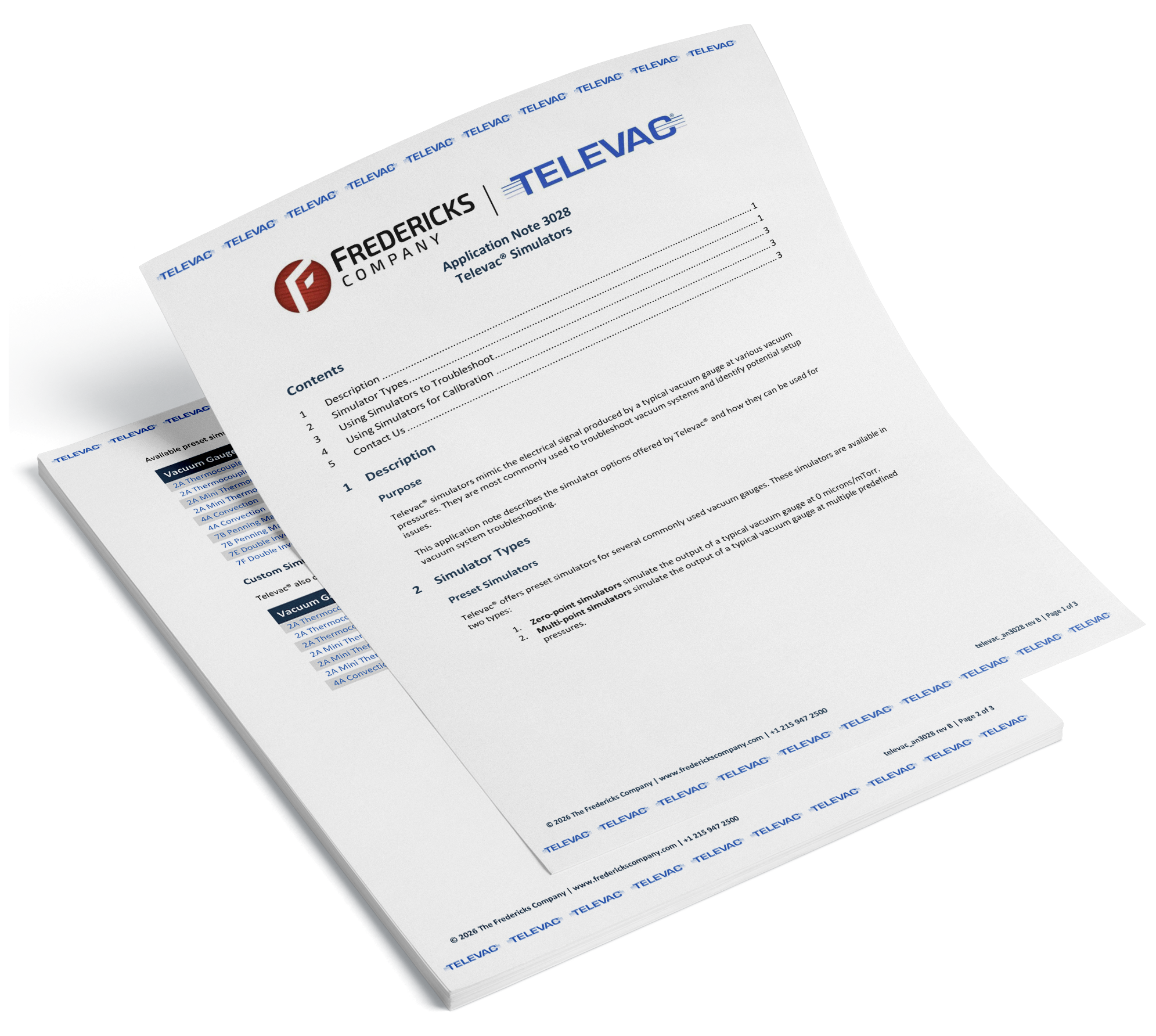

텔레바크 AN 3028: 텔레바크® 시뮬레이터

목적

Simulators mimic the electrical signal from a typical vacuum gauge at various vacuum levels/pressures. Their most common use is troubleshooting vacuum systems and identifying potential setup issues. This application note outlines simulators offered by Televac® and how they can be used.

Simulator Types

Televac® offers simulators for many of our most popular vacuum sensors. These simulators come in two different types:

1. 제로 포인트 시뮬레이터는 0 micons / mTorr에서 일반적인 진공 게이지 출력을 시뮬레이션합니다.

2. 멀티 포인트 시뮬레이터는 여러 압력에서 일반적인 진공 게이지 출력을 시뮬레이션합니다.

사용 가능한 시뮬레이터는 다음과 같습니다.

센서 모델 시뮬레이션된 압력 부품 번호
2A 써모커플 0(레드 라인, 0 미크론)
3점(0, 100, 1000 미크론)
2-2100-237
2-2100-242
2A 미니 써모커플 0(레드 라인, 0 미크론)
3점(0, 100, 1000 미크론)
2-2100-240
2-2100-241
4A 대류 0(레드 라인, 0 미크론)
3점(0, 1, 760 토르)
2-2119-000
2-2119-003
7B 페닝 그자석론 2점(10-3,10-5 토르)
4점(10-3,10-4,10-5,10-6 토르)
2-2100-93
2-2100-108
7E 더블 반전 자석 2점(10-2,10-5 토르) 2-2142-000
7F 더블 반전 자석 2점(10-3,10-5 토르) 2-2145-000

Using Simulators to Troubleshoot

If the vacuum readings on your Televac® controller are incorrect, it can be challenging to determine which part of the setup is causing the issue. Several troubleshooting methods are described below:

1. 시뮬레이터는 일반적인 진공 게이지에서 전기 신호를 나타내기 때문에 진공 게이지가 문제를 일으키는지 여부를 테스트하는 데 사용할 수 있습니다. 이 테스트를 위해 진공 게이지를 시뮬레이터로 바꾸고 컨트롤러의 출력이 합리적인 허용 오차 내에 있는지 확인합니다. 그렇지 않은 경우 게이지를 교체해야 할 수 있습니다.

2. 거의 모든 차가운 음극 게이지를 청소할 수 있으며, 이 게이지에 문제가 해결될 수 있습니다. 자세한 정보와 청소 절차에 대한 응용 프로그램 노트 3002 (7B 및 7E) 및 응용 프로그램 주 3004 (7FC 및 7FCS)를 참조하십시오.

3. 게이지를 교체해도 문제가 해결되지 않으면 시뮬레이터를 사용하여 진공을 당기지 않고 다른 시스템 구성 요소를 테스트할 수도 있습니다. 예를 들어 시뮬레이터와 함께 다른 케이블을 사용하여 문제가 있는 판독값을 수정하는지 확인할 수 있습니다.

A Note on Using Simulators For Calibration

Calibration is a common step in the set up of a vacuum controller. It ensures that the controller readings with a corresponding vacuum gauge are in tolerance. Simulators don’t account for gauge to gauge variation because a simulator is representative of a typical vacuum gauge. Therefore, calibrating with a simulator can cause incorrect readings when a vacuum gauge is connected. Because of this, Televac® does not recommend attempting to calibrate a vacuum controller using a simulator.

For more information on Televac®’s recommended practices for field calibration of vacuum systems, please see Application Note 3015.
