Part Number: 0717-4319-99
Compatible With: 1-6200-005 (SPI), 1-6200-006 (RS-232), 1-6200-007 (Analog/PWM), 1-6200-008 (RS-485), 1-6200-012 (Analog/RS-232)
This electrolytic tilt sensor (also sometimes called an electronic tilt sensor) gives a wide-range measurement up to ±50° with high accuracy of ±0.1° in two axes (dual-axis measurement). It has an industrial-grade, all-metal, and hermetically sealed sensor design for use in the most extreme environments. This sensor is slightly lower accuracy and lower cost than the similar 0717-4313-99 sensor, and it’s the lowest cost option (as well as the 0717-4318-99) of our other metal and glass electrolytic sensors.
All of our electrolytic sensors require an electrolytic tilt sensor circuit (also commonly referred to as signal conditioning or a signal conditioner) to provide a tilt angle output. This can be built into your system or you can purchase an electrolytic tilt sensor circuit we’ve designed. Our circuits are optimized for the best performance from our electronic tilt sensors.
To learn more about the principles of electrolytic sensors and how to integrate our sensors into your application, see our Technical Information page. Confused about terminology? The following terms are often used interchangeably, though they have slightly different meanings; tilt sensor, electrolytic tilt sensor, and electronic tilt sensor.
| Operating Range | ±50° |
| Linear Range | ±20° |
| Axes of Measurement | 2 |
| Linearity (±50°) | ≤5% |
| Linearity (±20°) | ≤1% |
| Repeatability | ±0.1° |
| Resolution | ≤0.003° |
| Null Offset | ≤5° |
| Cross Axis (Roll) Sensitivity | ≤0.025° per degree |
| Long Term Stability/Drift | ≤0.1° |
| Null Temperature Coefficient | ≤0.006° per °C |
| Scale Temperature Coefficient | 0.1% per °C |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -55 °C to 125 °C |
| Null Impedance | 50 kΩ |
| Time Constant (63.2% of final output) | ≤100 ms |
| Materials | Contains magnetic metals |
| Maximum Current at Null | 0.2 mA (continuous) |

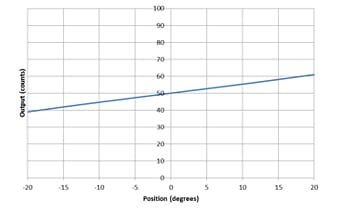

Linear Range

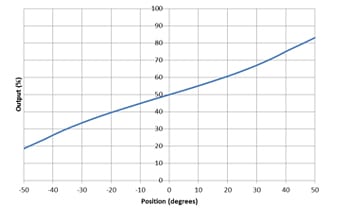

Operating Range
| Height (including leads) | 18.8 mm (0.740”) |
| Diameter (cap) | 8.26 mm (0.325”) |
| Diameter (flange) | 9.10 mm (0.360”) |
| Lead Spacing (center to center) | 2.54 mm (0.100”) |
| Lead Diameter | 0.48 mm (0.019”) |
| Lead Length | 5.08 mm (0.200”) |
| Weight | 1.5 g |
| RoHS Compliant |
Product Documentation
| 0717-4319-99 Datasheet |
| 0717-4319-99 STEP File |
Case Studies
| Case Study: Custom High Performance Tilt Sensor for Hydraulic Leveling Applications |
Application Notes
Tools
| Angle Measurement Converter |
Videos
| What Is An Electrolytic Tilt Sensor? |
Brochures
| Tilt Measurement Product Catalog |
Download STEP File
| Part Number | Description | STEP File |
| 0717-4319-99 | ±50° Electrolytic Tilt Sensor | Download |
0717-4319-99 Quantity Discounts
| Quantity | Price |
| 1 | $14.87 |
| 10 | $13.34 |
| 100 | $11.86 |
| 500 | $9.88 |
| 1000 | $8.06 |
| 2500 | $7.72 |
| 5000 | $7.21 |
| 10000 | $7.10 |
| 50000+ | $6.57 |
