Part Number: 0729-1760-04
Features and Benefits:
- ±10° operating range and linear range inclinometer
- Dual/two-axis measurement inclinometer
- Simple to use RS-485 communications digital inclinometer
- Response time of ≤100 ms high precision digital inclinometer sensor
- 5 V DC regulated supply voltage
- Low current device drawing 9 mA at 5 V DC; low power consumption
- Modular RJ45 connector for simple integration
- Superior performance in extreme temperatures and environments
- Excellent customer support

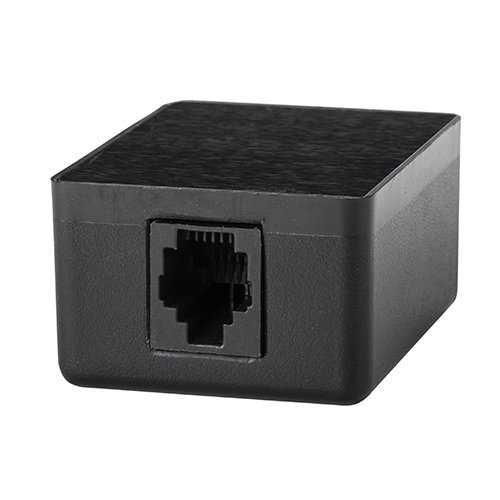

The 0729-1760-04 dual-axis high precision digital inclinometer sensor with RS-485 communications is designed and manufactured by Fredericks for use on heavy industrial machinery and other applications where an industrial, robust, cost-efficient solution is needed. This high-precision digital inclinometer sensor has a wide linear angle range and RS-485 communications combined with a small footprint make it simple to integrate into new or existing equipment and designs. The standard version of this inclinometer sensor has a modular RJ45 connector.
The Fredericks Company’s inclinometers take our proven electrolytic tilt sensors and combine them with electrolytic tilt sensor circuits in robust housings with potting to make inclinometer solutions for use in various markets and applications. Electrolytic tilt sensing technology makes these inclinometers extremely stable with no long-term drift compared to MEMS devices, all in a low-cost inclinometer package.
| Communications | RS-485 half duplex |
| Supply Voltage | 5 V DC regulated |
| Supply Current | 9 mA @ 5 V DC |
| Operating Range | ±10° |
| Linear Range | ±10° |
| Axes of Measurement | 2 |
| Accuracy at 23 ˚C | ±0.1° |
| Repeatability | ±0.1° |
| Resolution | 0.01° |
| Null Offset | ≤5° |
| Long Term Stability/Drift | ≤0.1° |
| Null Temperature Offset | ≤0.006° per °C |
| Range Temperature Offset | 0.1% per °C |
| Materials | Contains magnetic metals |
| Operating Temperature | -40° to 70° C |
| Storage Temperature | -40° to 70° C |
| Time Constant | ≤100 ms |
| Housing | ABS Plastic |
| Electrical Connections | Modular Jack 6P4C (RJ14) |
| Weight | 30 g |
| Length | 52.5 mm (2.065”) |
| Width | 39.5 mm (1.555”) |
| Height | 25.4 mm (1.00”) |
| Pin 1 | Supply voltage (+) |
| Pin 2 | RS-485 (A) |
| Pin 3 | RS-485 (B) |
| Pin 4 | Common |
| :01RA# | X and Y axis angle data |
| :0111# | X axis raw data (unsigned 16 bits) |
| :0121# | Y axis raw data (unsigned 16 bits) |
| :0141# | Temperature raw data (unsigned 10 bits) |
| :0180# | Product information |
| :0181Axx# | Change address to xx |
| :0182Sxxxxxxxxxxxx# | Enter user information |
| :0182D# | Read user information |
| :0184Z# | Save current position as zero |
| :0184R# | Reset zero (clear offset value) |
| :0188Rx# | Change baud rate (baud rate code x) |
| :0189B# | Reset to factory defaults |
| Baud Rate Codes | |
| 1 | 1200 |
| 2 | 2400 |
| 3 | 4800 |
| 4 | 9600 (standard) |
| 5 | 19200 |
| 6 | 38400 |
:01RA response is :01RA+/-XXXX+/-YYYY# where XXXX is the current x axis tilt position in degrees (multiplied by 100), and YYYY is the current y axis tilt position in degrees (multiplied by 100).
