1-6200-008 RS-485 Signal Conditioner - Electrolytic Tilt Sensor Circuit

Part Numbers: 1-6200-008, 1-6200-008-MV7


Compatible With: All Fredericks electrolytic tilt sensors


Features and Benefits:

  • Small size electronic tilt sensor
  • RS-485 communications for simple integration
  • Mounting holes and connectors for simple integration
  • 0717 series sensors can be mounted directly on the board
  • 0703 series sensors can be mounted externally and connected with wires

All Fredericks electrolytic tilt sensors require a basic electrolytic tilt sensor circuit to generate a tilt angle output. These are often called signal conditioners, signal conditioning boards, or electronic tilt sensors. The 0717 series dual/two-axis tilt sensors can be mounted directly on these boards for a complete inclinometer solution. Other single/one axis 0703 series and glass tilt sensors must be mounted externally and connected with wires.

This electrolytic tilt sensor circuit has RS-485 communications and mounting holes, making it simple to integrate into your own design. If you’d like to integrate the electrolytic tilt sensor circuit PCB into your own circuit design, The Fredericks Company can offer bills of material, Gerber files, and firmware source files along with engineering support for the integration. We have electrical/hardware, firmware, and mechanical design engineers on staff to assist with this process.

Product Description
Price
Sensor Type
Quantity
RS-485 Signal Conditioning Board
RS-485 Signal Conditioning Board
PN: 1-6200-008
$69.13

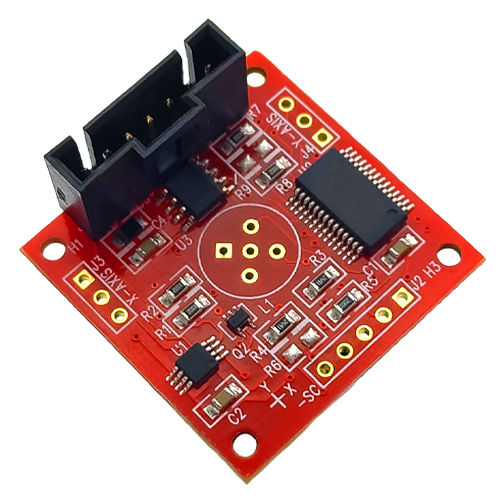

RS-485 Signal Conditioning Board with Molex Connector
RS-485 Signal Conditioning Board with Molex Connector
PN: 1-6200-008-MV7
$69.13

Interface RS-485
Analog Input Resolution 16 bits (10 bits oversampled)
Operating Range 0% to 100% of sensor range
Supply Voltage 3.3 V DC to 5 V DC
Supply Current 9 mA @ 5 V DC, 6 mA @ 3.3 V DC
Operating Temperature -40 °C to 85 °C
Storage Temperature -40 °C to 125 °C
Sensors Controlled 1 or 2
Axes of Measurement 1 or 2
Temperature Sensor Range -40 °C to 125 °C
Housing None
Electrical Connections
(1-6200-008)
7 Pin, 2.54 mm (0.1") spacing
Electrical Connections
(1-6200-008-MV7)
7 Pin, 2.54 mm (0.1") spacing
Weight 4 g
Length 32 mm (1.25")
Width 32 mm (1.25")
Hole Center 27 mm (1.05”)
1-6200-008 Dimensional Drawing
J1 Pin 1 (+5) Supply (+)
J1 Pin 2 (C) Supply (-)
J1 Pin 3 (C) Ground
J1 Pin 4 (B) RS-485 B (-)
J1 Pin 5 (A) RS-485 A (+)
J1 Pin 6 (C) Ground
J1 Pin 7 (C) Ground
L1 Dual axis sensor connection
J3 Single Axis sensor x axis connection
J4 Single axis sensor y axis connection

RS-485 Information

Baud Rate (default 9600) 1200 to 38400
Data Bits 8
Parity None
Stop Bits 1
Address (default 99) 01 to 99
Maximum Signal Conditioners on Bus 32

RS-485 Commands (Assume default address 99)

*9911# X axis output (0 to 65535)
*9921# Y axis output (0 to 65535)
*9941# Temperature output (0 to 1023)
*9980# Read product information
*9981Axx# Change address to xx (01 to 99)
*9982D# Read user information
*9984Z# Set current position as zero
*9984R# Clear saved zero position
*9988Rx# Change baud rate to x (1 to 6)
*9989B# Reset to factory default settings
RoHS Compliant

>

Quantity Price
1 $69.13
10 $65.30
100 $58.75
500 $47.24
1000+ $41.98
