Part Number: F260-21A-018-00
Features and Benefits:
- ±60° operating range in two axes
- ±0.5° accuracy (±60° @ -10 °C to 50 °C)
- ±1° accuracy (±60° @ -40 °C to -10 °C
- ±1° accuracy (±60° @ 50 °C to 70 °C)
- ±0.1° repeatability, ≤0.01° resolution, ≤250 ms response time
- 0.5 to 4.5 V DC analog output for each axis
- 10 to 30 V DC supply voltage
- -40 °C to 70 °C operating temperature
- IP67 environmental protection
Product Description
Price
Quantity

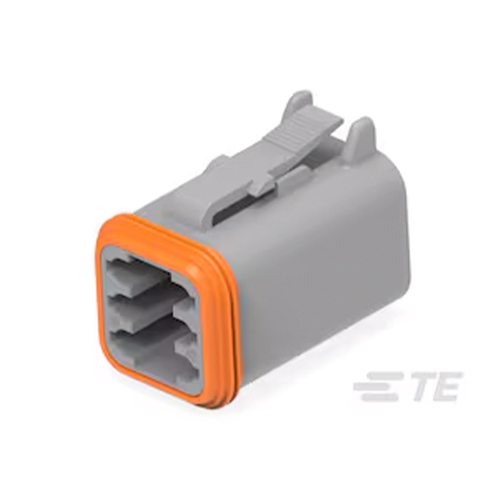

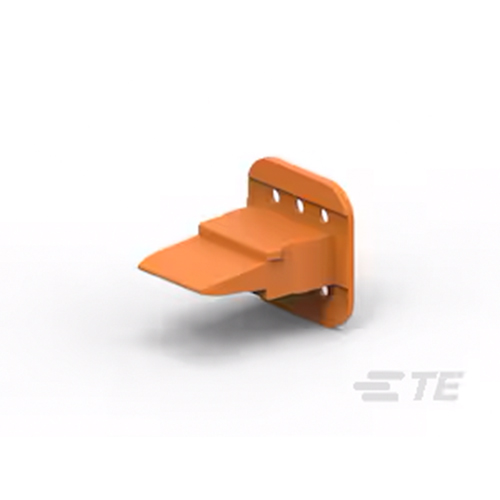

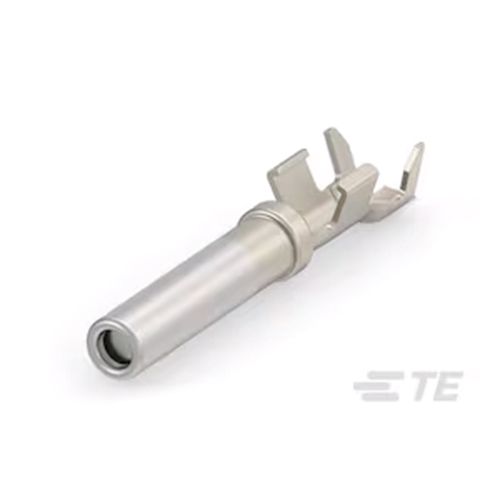

ApexTwo™ Mating Connector
Product Description
Part Number
Manufacturer
| Interface | Analog 0.5 V DC to 4.5 V DC |
| Supply Voltage | 10 V DC to 30 V DC |
| Supply Current (No Output Load) | 10 mA @ 12 V DC |
| Operating Range | ±60º |
| Axes of Measurement | 2 |
| Accuracy (±60° @ -10 °C to 50 °C) | ±0.5° |
| Accuracy (±60° @ -40 °C to -10 °C) | ±1° |
| Accuracy (±60° @ 50 °C to 70 °C) | ±1° |
| Repeatability (±60° @ -40 °C to 70 °C) | ±0.1° |
| Resolution | ≤0.01° |
| Analog Out Gain (Scale Factor) | 0.0333 V DC per degree |
| Null (Zero, 0°) Output (Nominal) | 2.500 V DC |
| Null (Zero, 0°) Offset Tolerance | ±5° (±0.1666 V DC) |
| Response Time | ≤250 ms |
| Analog Out Load | ≥5 kΩ |
| Analog Out Source Current | ≤2 mA |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Startup Time | <1 second |
| Environmental Protection | IP67, UV stable |
| Electrical Protection | Reverse polarity |
| Overvoltage | |
| Short circuit |
| Enclosure | Polyphenylene Sulfide (PPS) |
| Description | Color |
| Pin 1 | Supply (+), 10 to 30 V DC |
| Pin 2 | Analog Out X Axis (+) |
| Pin 3 | Analog Out Y Axis (+) |
| Pin 4 | Ground |
| Pin 5 | Ground |
| Pin 6 | Shield |
| VOut = 0.5 V DC to 4.5 V DC output |
| VOffset = V Out at 0° tilt, 2.500 V DC typical ±0.1666 V DC offset tolerance |
| Pending CE certification to EN 55011, EN 61000 |
| RoHS, REACH compliant |
| IP67 environmentally sealed |
Product Documentation
| F260-21A-018-00 Datasheet |
3D Model (STEP File)
| ApexTwo™ Analog (0.5 to 4.5 V DC): F260-21A-018-00 |
Video
| What Is An Electrolytic Tilt Sensor |
Tools
| ApexTwo™ Analog Output Converter |
| Angle Measurement Converter |
Brochure
| Tilt Measurement Product Catalog |
Download STEP File
| Part Number | Description | STEP File |
| F260-21A-018-00 | ApexTwo™ Analog (0.5 to 4.5 V DC) Output | Download |
Tilt Angle: 0.00
Analog Output Information
| Description | Converter Accepted Values |
| VOut = 0.5 V DC to 4.5 V DC output | 0.5 to 4.5 |
| VOffset = V Out at 0° tilt, 2.500 V DC typical ±0.1666 V DC offset tolerance | 0.5 to 4.5 |
ApexTwo™ Quantity Discounts
| Quantity | Price |
| 1 | $116.85 |
| 10 | $108.40 |
| 100 | $99.85 |
| 500 | $95.00 |
| 1000 | $87.40 |
| 2500 | $86.65 |
